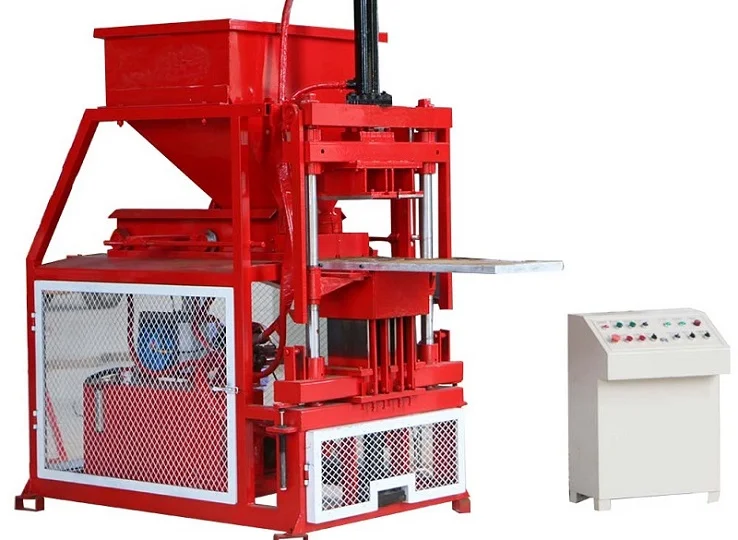

2-10 is a updated version of 1-10. Both of them are fully automatic hydraulic clay interlocking brick making machine.

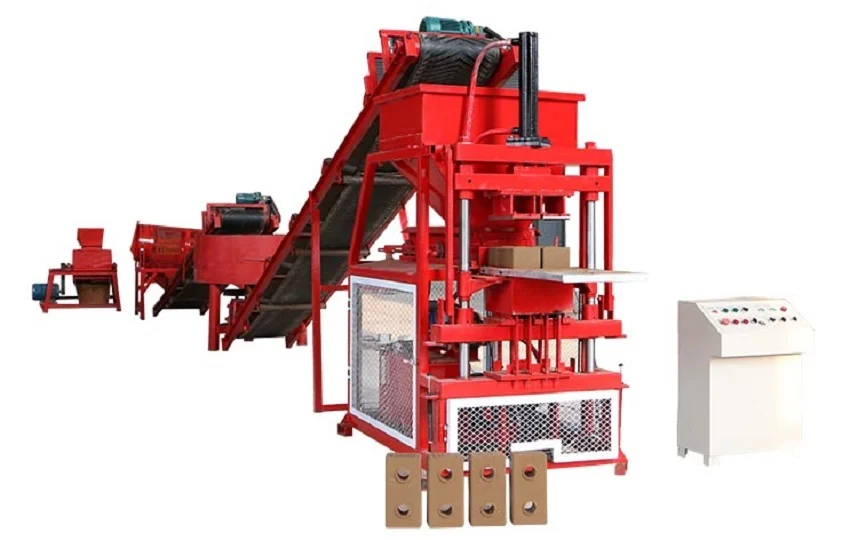

The full line is composed of soil crusher, soil screen, conveyor belts, pan mixer and host machine. You can choose the accessories according to your requirement.
| Dimention | 1850x900x2050mm |
|---|---|
| capacity | 5760Pcs/8 hours |
| Pieces/Mould | 2 |
| Power | 21.7 kw/h |
| Pressure | 21mpa |
| Shaping cycle | 8-10s |

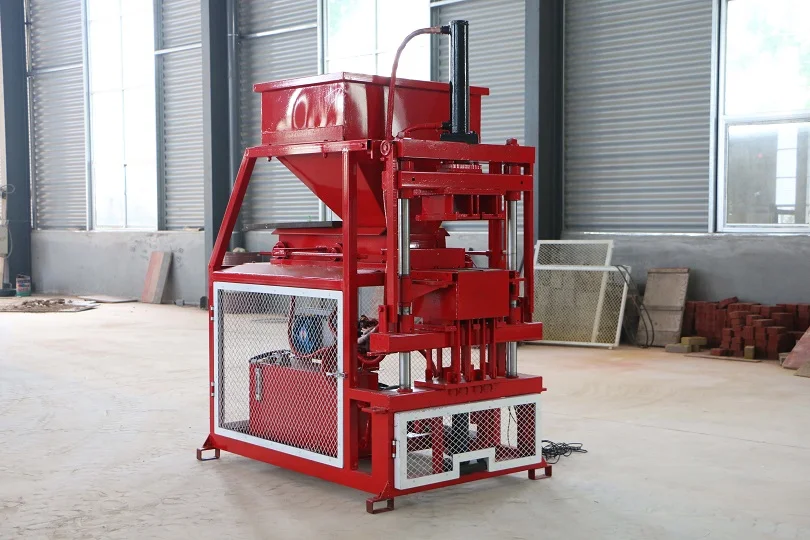

2-10 Fully-automatic Compressed Earth Brick Machine is a updated version of 1-10 brick machine. Both of them are fully automatic hydraulic clay interlocking brick machine.
The full line is composed of soil crusher, soil screen, conveyor belts, pan mixer and host machine. You can choose the accessories according to your requirement.
The fully automatic brick machine can produce all kinds of interlocking blocks just by changing the moulds.
2-10 is a automatic brick machine and the shaping cycle is as short as 10s，The production can be finished by pressing the start button，it’s easy to operate, so the production efficiency is very high with labor saving. For example, for size 300*150*100, It can achieve 5760 pieces per shift (8 hours)
Hydraulic pressure molding technology is adopted by this machine, and the pressure can arrive at 40MPa, so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
2-10 compressed earth brick machine is a small type block machine, which can be easily operated by only one person.And it has been widely used in african countries.
Main Parameter :
| Dimension | 1850x900x2050mm | Weight | 1500Kg |
| Shaping cycle | 8-10s | Pressure | 21Mpa |
| Host machine power | 7.5KW | Mixer model | JQ350 |
| Capacity | 5760Pcs/8 hours | Maximum block size | 300x150x100mm |
| Pieces/Mould | 2 | Voltage | Adopts to local voltage |
2-10 Clay block factory all items investment information solution:
| Total Line Power Consumption | 21.7 kw/h; |
| Max. Material Consumption Per 8 Hours a. 10% cement, 90% clay b. 250-125-75MM; 2 holes hollow block | Water: about 461 kgs |
| Cement: about 2257 kgs | |
| Clay: about 20320 kgs | |
| Factory total size | At least 800 square meters |
| Workers | 4-5 workers in factory |
| Main parts quality | Motor: Shanbo brand (Chinese famous brand) PLC: Vigor from Taiwan Inductor and Switch: CHNT and Schnelder |
| Warranty | One year |
Clay Interlocking Blocks Sample :
