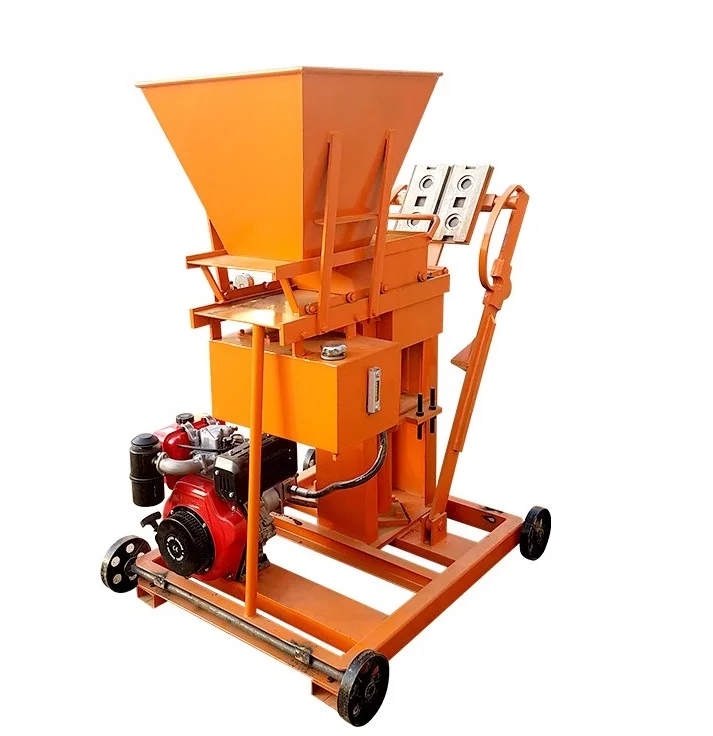

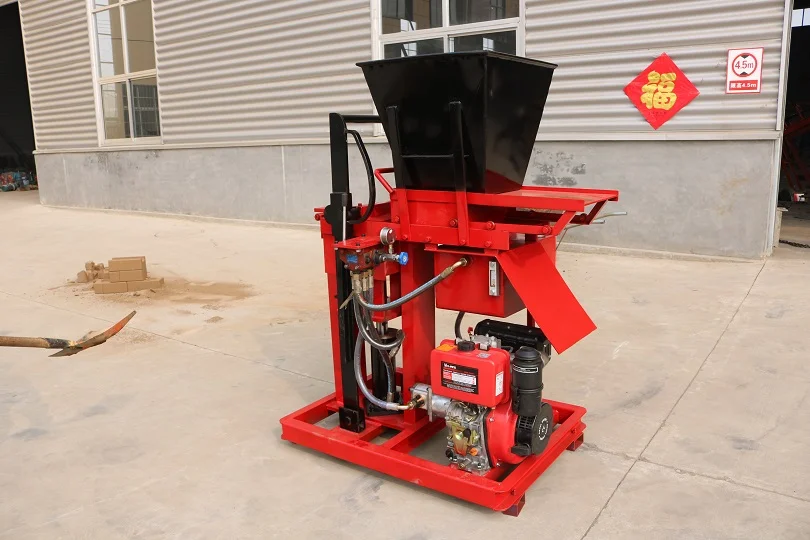

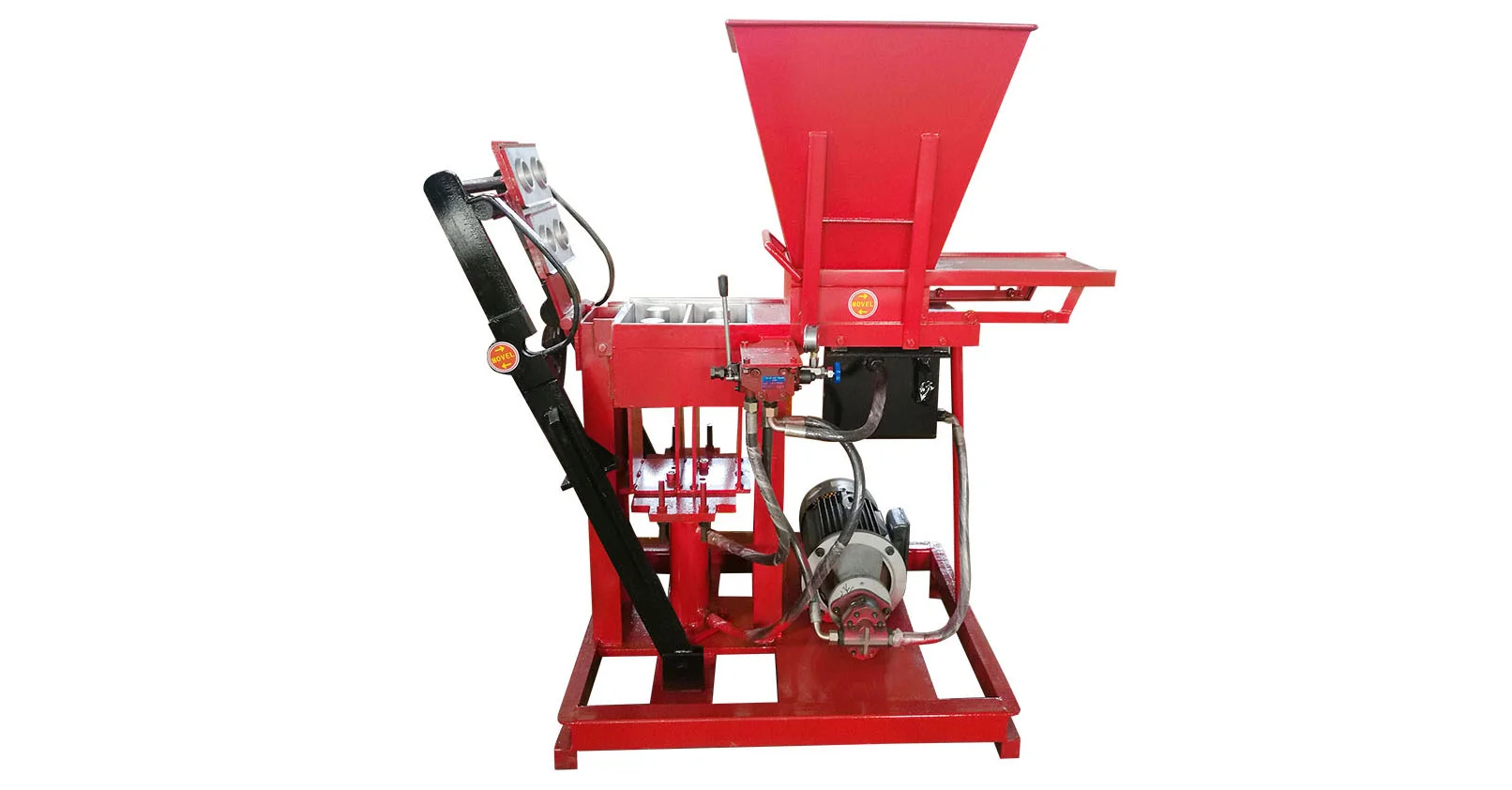

2-25 Clay Interlocking Block Machine

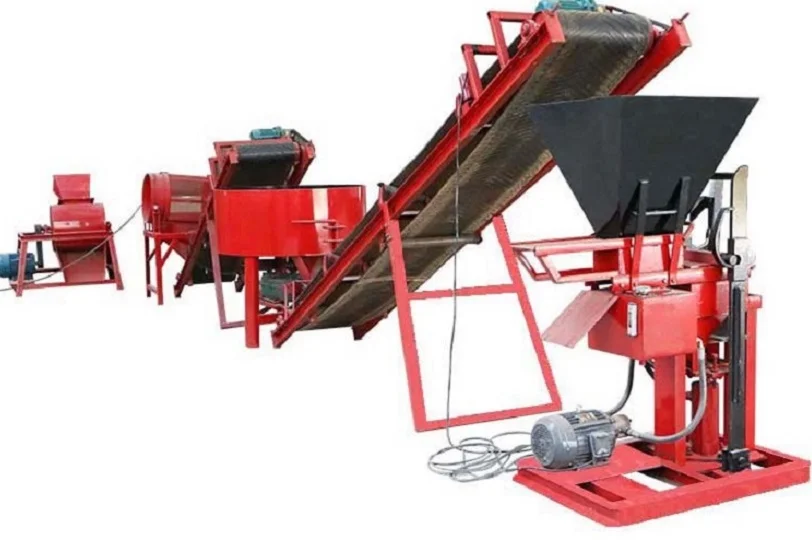

2-25 clay Interlocking block machine is a updated version of 1-25 Compressed earth brick machine. there are diesel engine and electric motor for your choice ,this machine can produce 2 block at a time and 2304pcs/8Hours. You can also equip this machine with mixer, conveyor, crusher and screen according to your actual situation.

2-25 clay Interlocking block machine can produce many different shapes clay interlocking bricks and pavers by changing moulds.

Hydraulic pressure molding technology is adopted by this machine, so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.

2-25 Compressed earth brick machine is easy to operate, it can be easily operated by one or two person. So you can start your career with very little labor.

Main Parameter :

Production Capacity :

Brick size(LxWxH mm)	Brick picture	Pcs/mould	Pcs/shift
230x220x115mm		2	2304
230x180x115mm		2	2304
300x150x100mm		2	2304

Interlocking Blocks Sample :

Notice :

• total production line needs 2-3 workers
• The raw material proportion for your reference:     a. Clay: 100% clay       b.10% cement, 90% clay
• Factory Area: 600-1000m²
