7-10 is the upgrade version of machine 5-10, the machine performance and output are both improved. It is composed of crusher, sieve, pan mixer, conveyor belt, brick making machine, brick conveyor machine, You can choose suitable supporting facilities according to your requirements.
| Dimention | 1900x1650x2100mm |
|---|---|
| capacity | 16800Pcs/8 hours |
| Pieces/Mould | 7 pcs/mould |
| Shaping cycle | 8-10s |
| Power | 11 KW |
| Voltage | Adjustable |

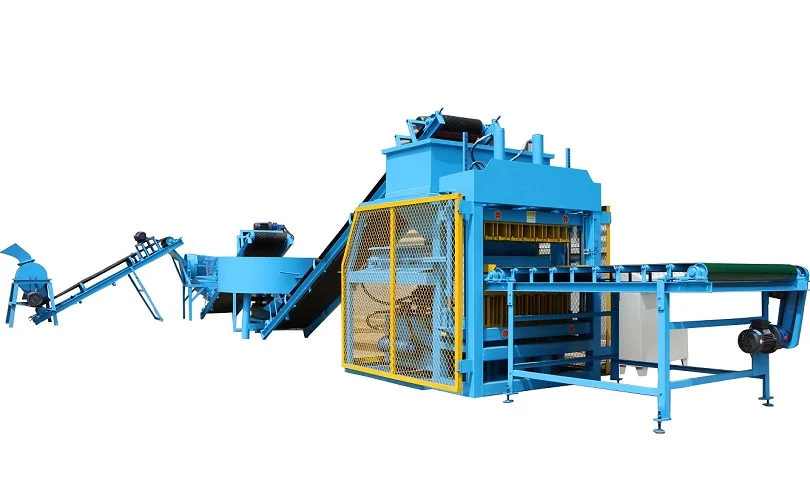

7-10 Fully Automatic Interlocking Brick Making Machine is the upgrade version of machine 5-10, the machine performance and output are both improved. It is composed of crusher, sieve, pan mixer, conveyor belt, brick making machine, brick conveyor machine, You can choose suitable supporting facilities according to your requirements.
The vertical directional hydraulic high pressure molding technology are adopted by this machine, to make sure the excitation are concentrated on the mold, which not only increases the compactness of brick, but also reduces the noise of the frame.
7-10 Fully Automatic Interlocking Brick Making Machine is our new clay and cement brick making machine. Equipped automatic control box, material feeding, brick molding and conveying all are automatic，clay brick will be made in 8-10 seconds.
Main Parameter :
| Dimension | 1900x1650x2100mm | Weight | 1500Kg |
| Shaping cycle | 8-10s | Pressure | 80Mpa |
| Host machine power | 11 KW | Pieces/Mould | 7 |
| Capacity | 16800Pcs/8 hours | Voltage | Adopts to local voltage |
Details :

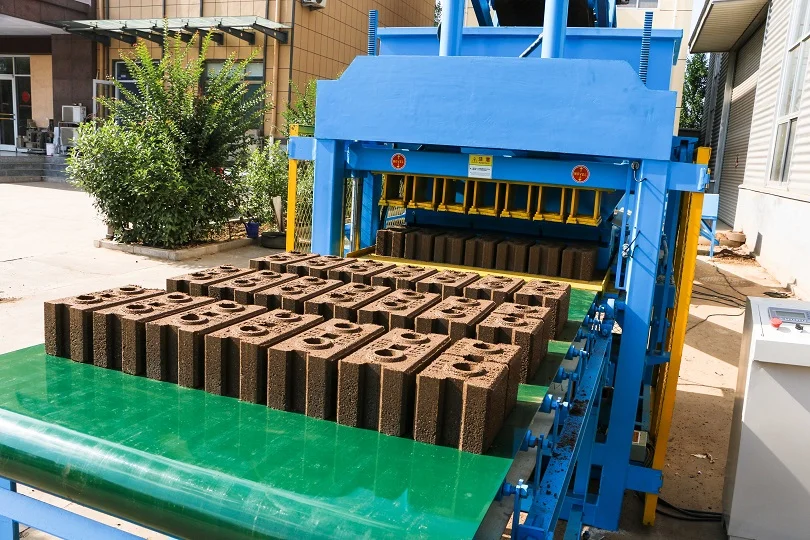

Interlocking Blocks Samples :
Notice :
1. All 7-10 fully automatic interlocking brick making machine need to load into a 20GP container.
2. 7-10 machine mold changeable
3. Total need 4 workers. 1 for crusher, 1 for screen and mixer, 2 for block delivery
4. Raw material proportion for your reference:
a. Clay: 100% clay
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
d. 10%-25% cement, 75%-90% clay
20 years experience brick making machine manufacturer, your first choice
