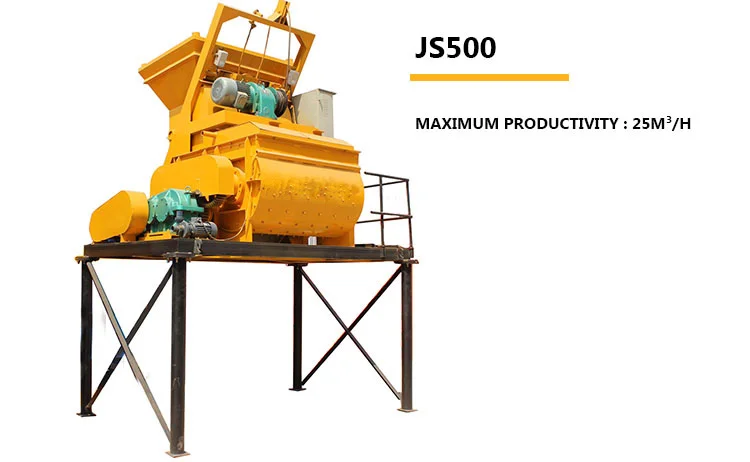

JS500 Concrete Brick Machine Mixer

JS 500 Concrete Brick Machine Mixer

JS 750 Concrete Brick Machine Mixer

Additional information

JS500 concrete brick machine mixer price soil mixer
Charging Capacity(L)	800	Cycle Time(s)	72
Discharging Capacity(L)	500	Strring Vane Rev Speed(r/min)	31
Production Capacity(m3/h)	≥25	Strring Vane Quantity	2*7
Max Aggregate Diameter mm	≤40/60	Strring Motor power(kw)	18.5
Lifting Motor power(kw)	5.5	Pump Motor power(kw)	0.75
Dimensions(mm) Travel State	303025202880	Dimensions(mm) Operation State	502531005680
Total weight(Kg)	5500

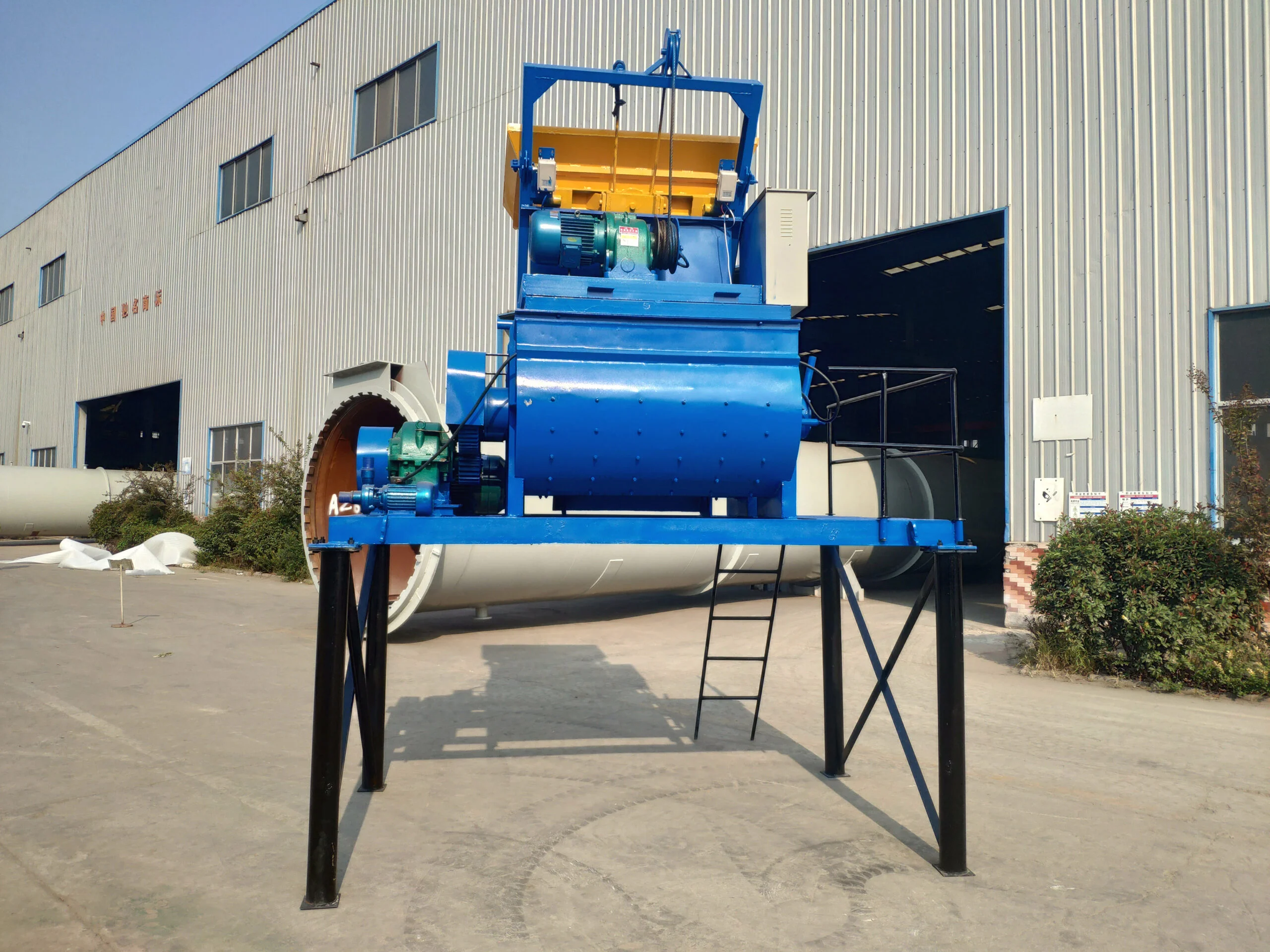

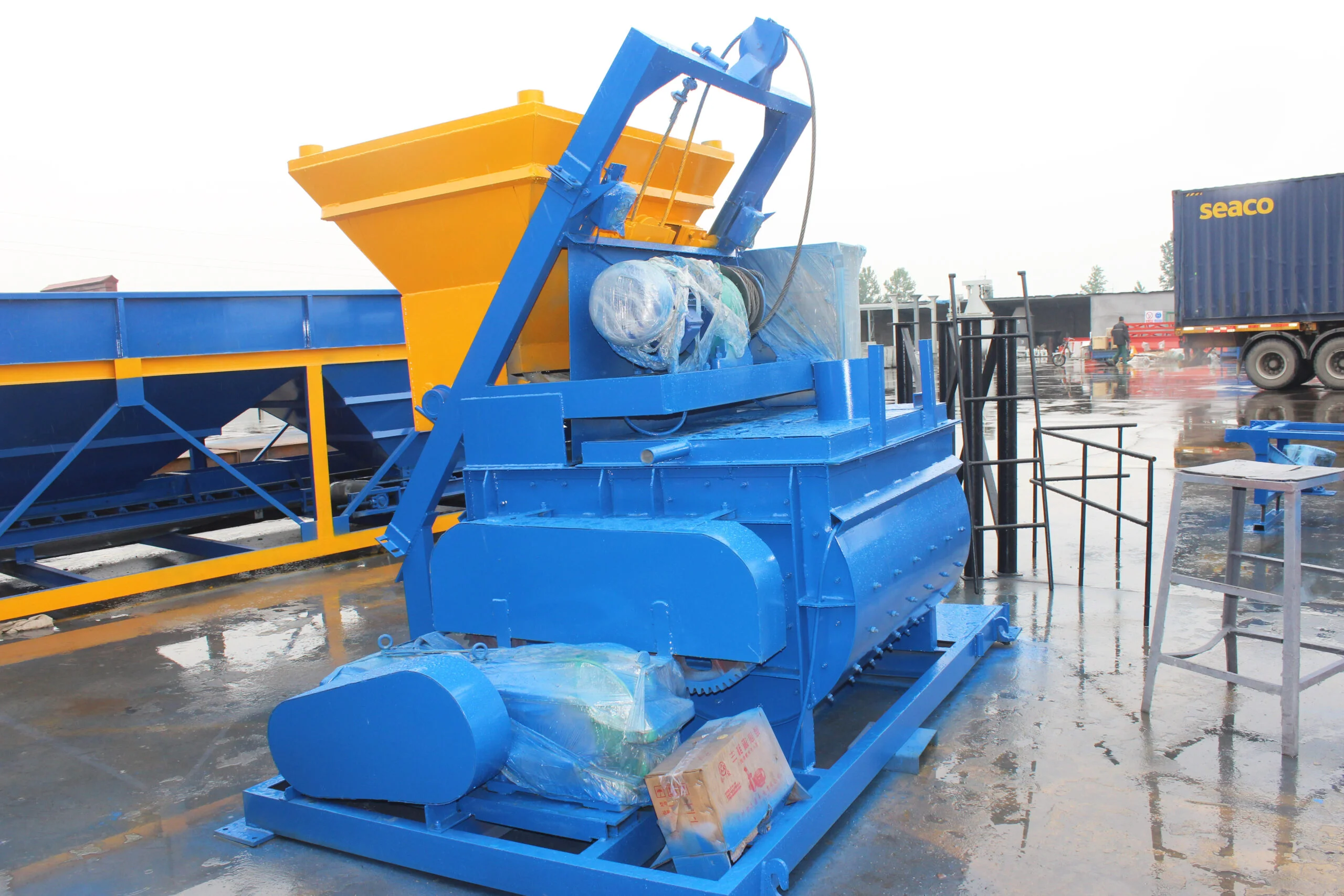

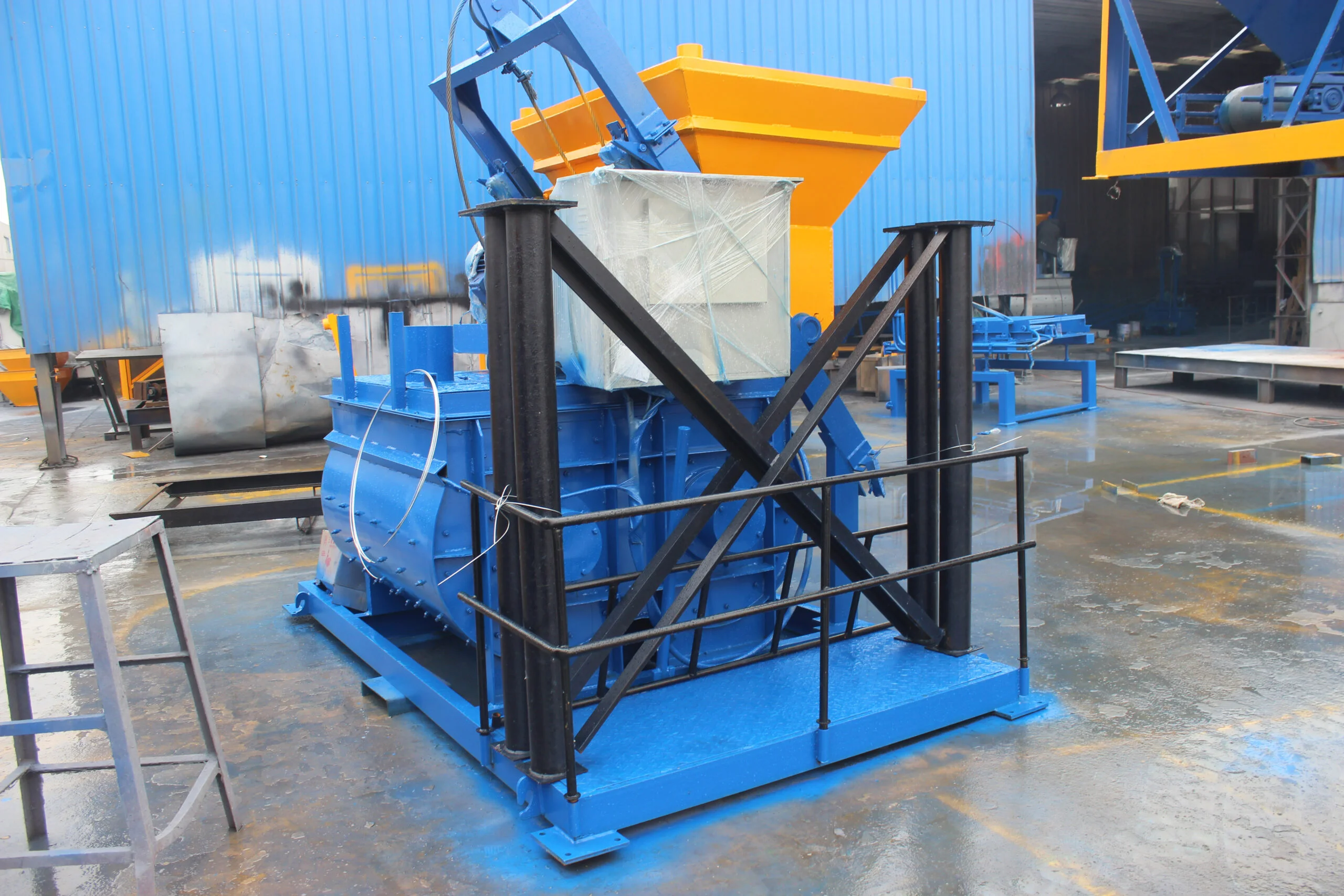

JS 500 Concrete Brick Machine Mixer Details：

The high-quality motor ensures the stable operation of the mixer. Even under the harsh production conditions, the mixer can be operated with high efficiency and low noise. At the same time more space-saving, compared with the traditional mixer, JQ350 mixer maintenance space can be increased by 30%.
Flexible couplings and fluid couplers (options) can effectively protect the operating system from overload.
The stirring blades of manganese steel are more resistant to wear, and polyurethane blades are available at the same time to meet the needs of different mixing materials.
For mixing different materials, the liner can use special materials.
