4-10 Fully-automatic Hydraulic Interlocking Block Machine – Professional Block Making Machine Manufacturer4-10 Fully-automatic Hydraulic Interlocking Block Machine - Professional Block Making Machine Manufacturer

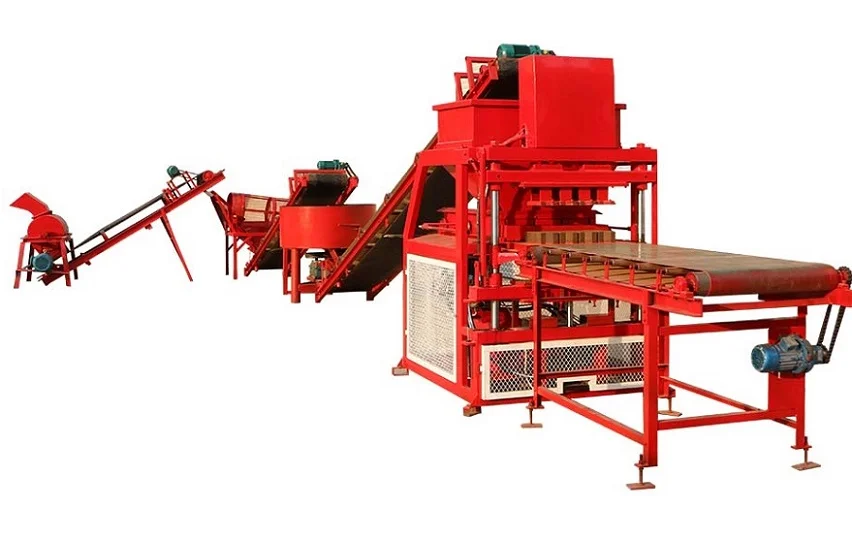

4-10 is a fully automatic PLC control hydraulic press clay brick production line, It is composed of crusher, screen, pan mixer, conveyor belt and brick making machine. You can choose suitable supporting facilities according to your requirements.
4-10 is a fully automatic PLC control hydraulic press clay interlocking block machine production line, It is composed of crusher, screen, pan mixer, conveyor belt and brick making machine. You can choose suitable supporting facilities according to your requirements.

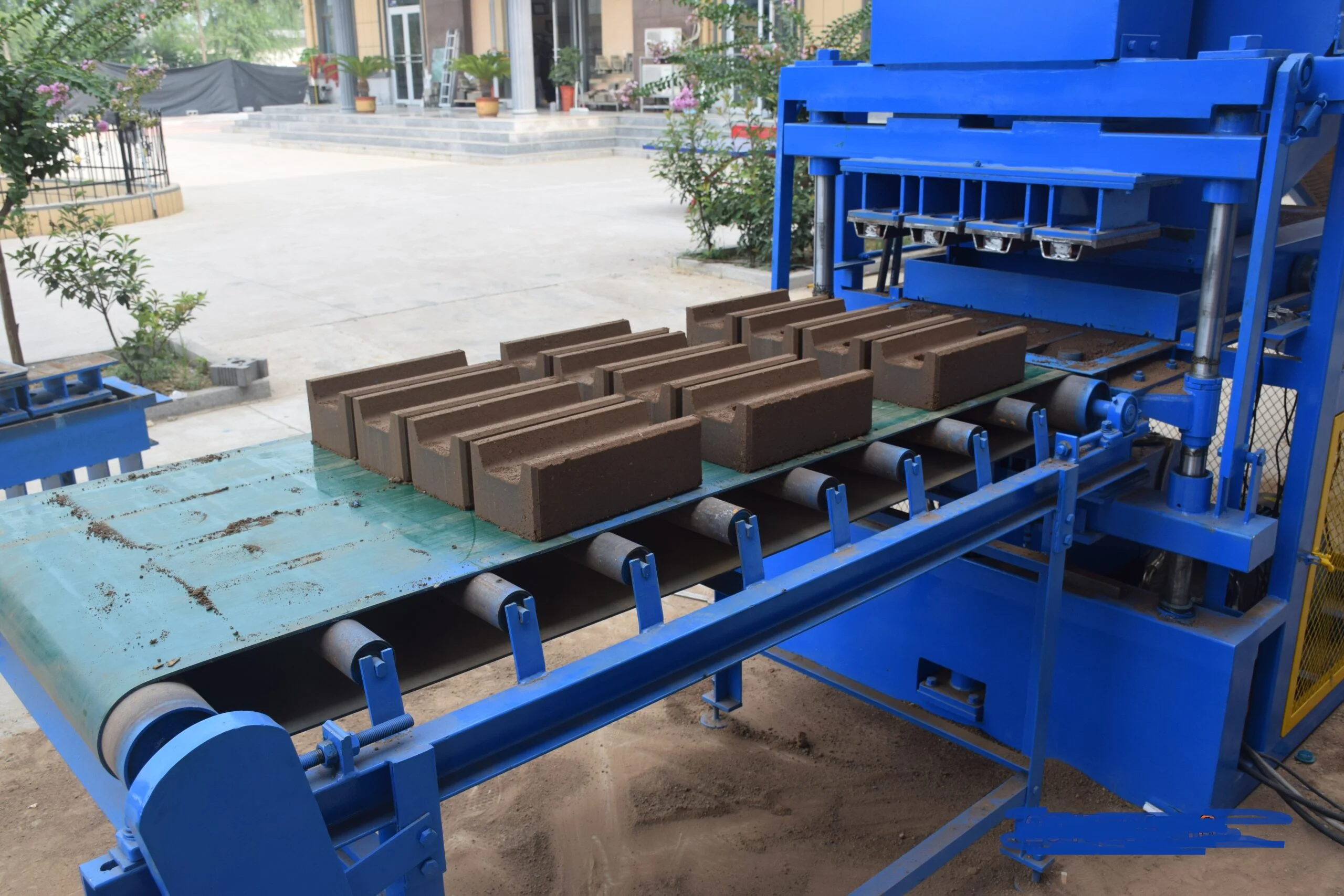

4-10 Fully-automatic Hydraulic Interlocking Block Machine is the upgraded version of 2-10, and it can produce four bricks at one time, its production capacity can reach 11520 Pcs per 8 hours.
This machine can produce various different interlocking bricks by changing its mould.
Hydraulic system is adopted by this machine, and this can make the bricks produced more durable and stronger.

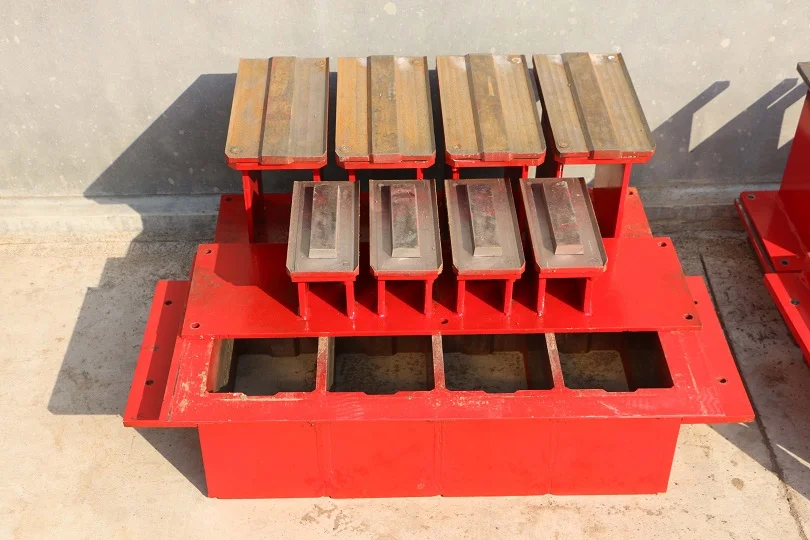

Our moulds adopt precise line cutting technology and carburizing heat treatment technology to prolong mold life and block precision. The using life is 7-8 times longer than common molds
Main Parameter :
Dimension
1800x1500x2210mm
Weight
3500Kg
Shaping cycle
8-10s
Pressure
60Mpa
Host machine power
11 KW
Pieces/Mould
4
Capacity
11520Pcs/8 hours
Voltage
Adopts to local voltage
4-10 Clay block factory all items investment information solution:
Total Line Power Consumption
25.25 kw/h; 202 kw/8 hours
Max. Material Consumption Per 8 Hours
a. 10% cement, 90% clay
b. 250-125-75MM; 2 holes hollow block
Water: about 922 kgs
Cement: about 4515 kgs
Clay: about 40643 kgs
Factory total size
At least 800 square meters
Workers
4-5 workers in factory
Main parts quality
Motor: Shanbo brand (Chinese famous brand)
PLC: Vigor from Taiwan
Inductor and Switch: CHNT and Schnelder
Warranty
One year
Details :
Interlocking Blocks Samples :
Notice :
All 4-10 block machines line need to load into a 20GP container.
Total need 4 workers. 1 for crusher, 1 for screen and mixer, 2 for block delivery
Raw material proportion for your reference:
a. Clay: 100% clay
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
d. 10%-25% cement, 75%-90% clay
