QTM10-15M is a mobile automatic hydraulic concrete block making machine, so this machine doesn’t need pallets, you can saver cost largely. You can equip this machine with cement silo, concrete mixer, batching machine according to your requirement
Dimention | 4800*2400*2100mm |
---|---|
Power | 24KW |
Voltage | Adjustable |
Pressure | 16-20Mpa |
Shaping cycle | 15-20 seconds |
Weight | 4800kg |
QTM10-15M is a mobile automatic hydraulic concrete block making machine, so this machine doesn’t need pallets, you can saver cost largely. You can equip this machine with cement silo, concrete mixer, batching machine according to your requirement

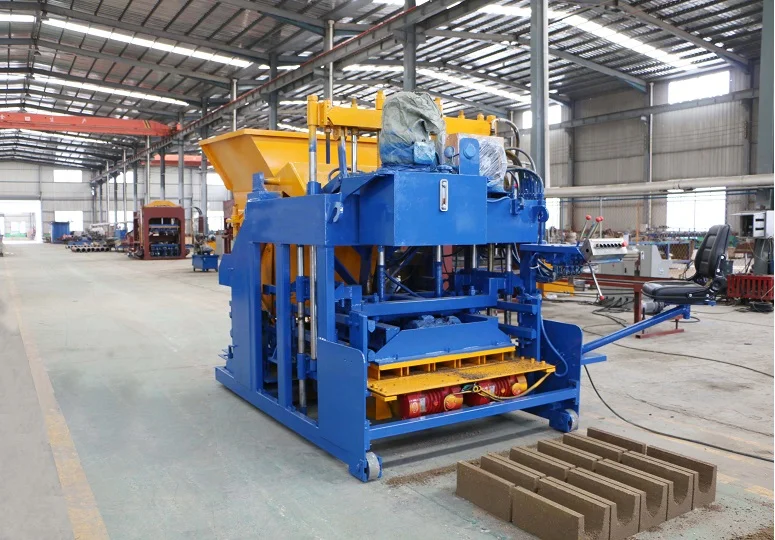

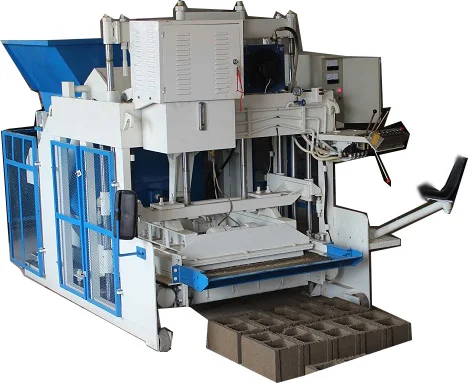

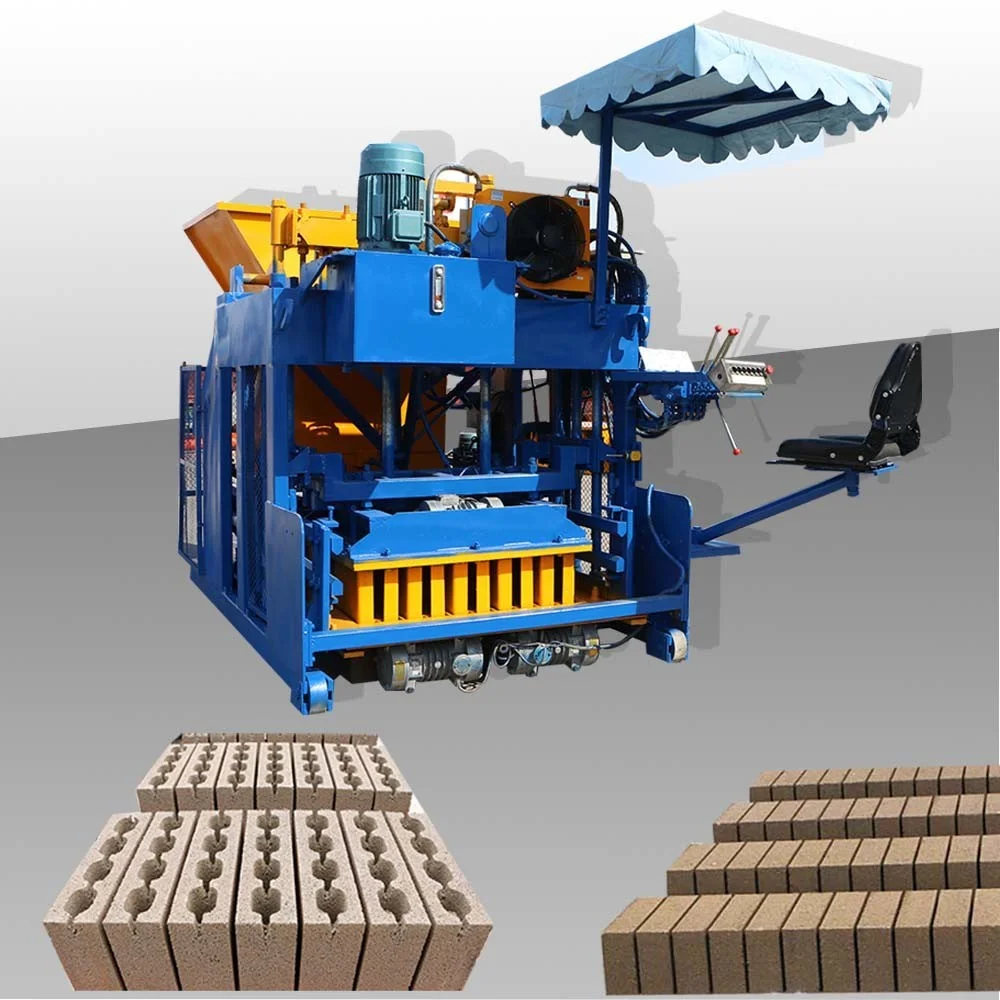

QTM10-15M Mobile Concrete hollow block making machine can produce cement and concrete blocks and pavers of various shapes and sizes by changing moulds.
QTM10-15M is a automatic block machine and the shaping cycle is 10~15s, so the production efficiency is very high. The production capacity varies according to the size and types of brick.

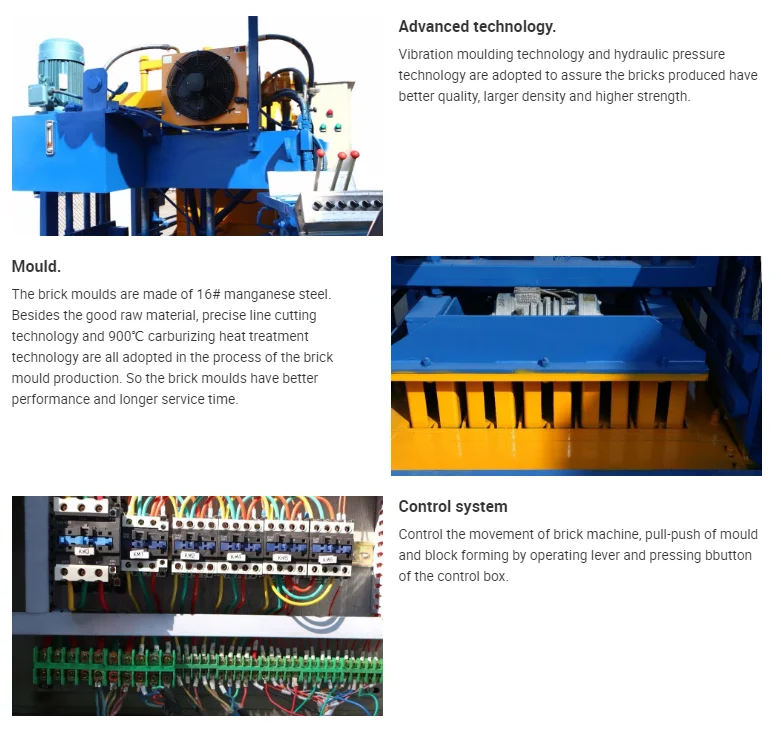

Hydraulic pressure molding technology is adopted by this machine, so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
Our moulds are made of 16# manganese steel. Besides the good raw material, precise line cutting technology and 900 ℃ carburizing heat treatment technology are all adopted in the process of brick moulds production. So the brick moulds have better performance and longer service time.
Technical specification | |||
Overall size | 4800*2400*2100mm | Total weight | 4800KGS |
Excitation frequency | 3200Hz | Hydraulic pressure | 16-20Mpa |
Vibration force | 55KN | Shaping cycle | 15-20 seconds |
Vibration style | Molding vibration | Demold method | Hydraulic |
Pallet size | No need pallets | Tuming method | Hydraulic |
Electricity | 380V or as order | Motor Brand | Siemens |
QTM10-15 Movable Concrete Block Making Machine Capacity | ||||
No. | Size (L*W*H) | Pieces/Mould | Pcs/Hour | Pcs/Shift |
1 | 400* 200* 200mm | 10 | 1500- 1800 | 12000- 14400 |
2 | 400* 150* 200mm | 14 | 2100- 2500 | 16800- 20000 |
3 | 400* 100* 200mm | 18 | 2700- 3240 | 21600- 25920 |
Raw material proportion for your reference:
a. Concrete: 10% cement, 30% sand, 60% small stones
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
