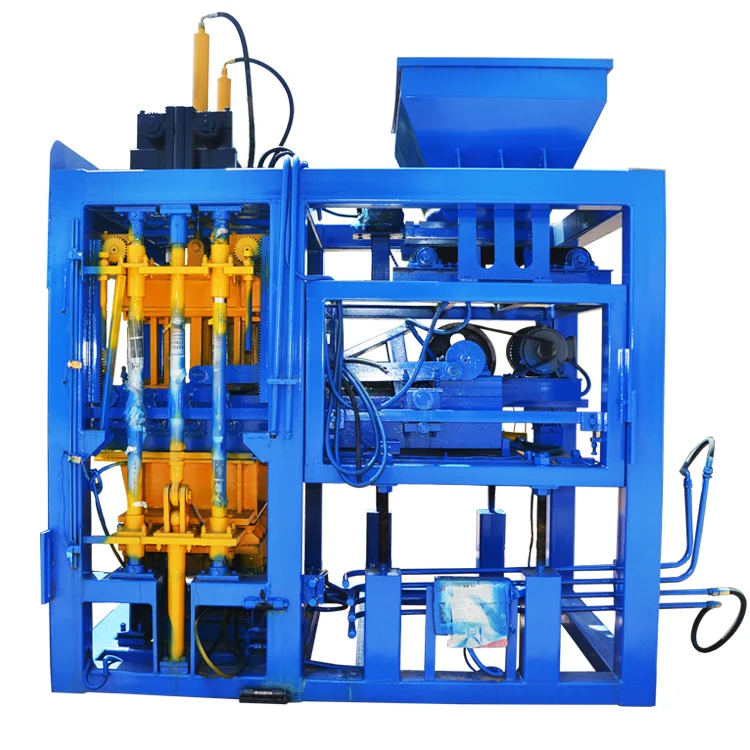

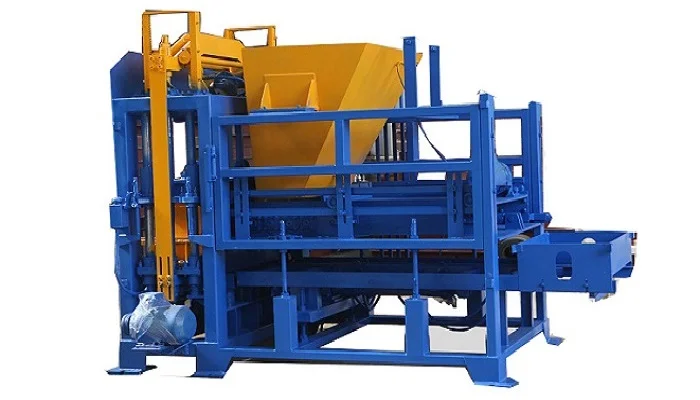

QT4-15 Automatic Concrete Block Machine

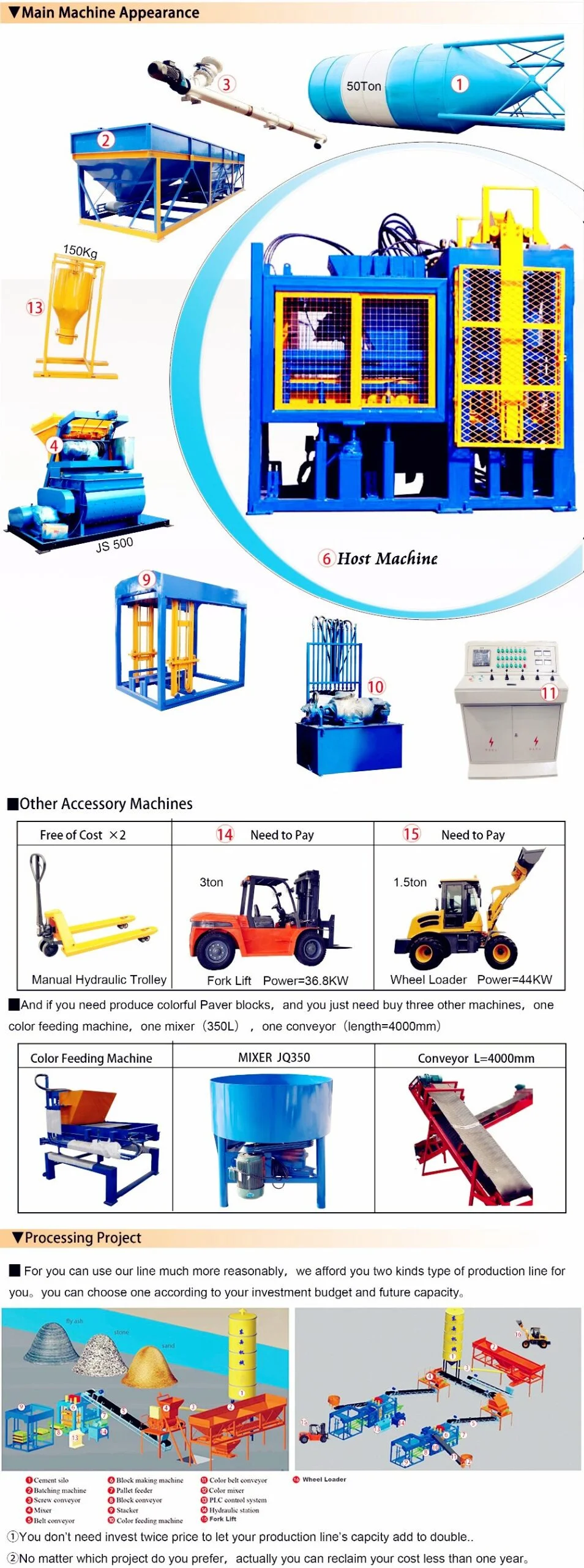

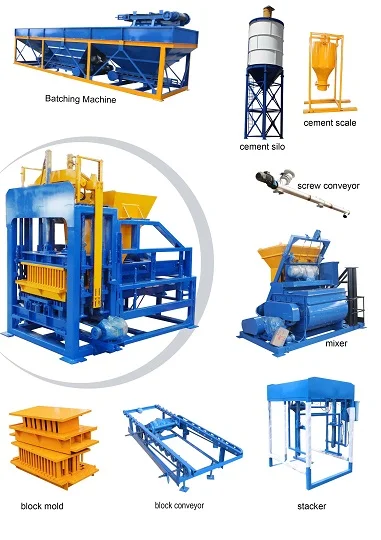

QT4-15 is a full automatic hydraulic concrete blocks making machine production line. This whole production line is composed of cement silo, screw conveyor machine, cement scale, batching machine, mixer, belt conveyor, pallet feeder, automatic stacker and block making machine. You can choose suitable supporting facilities according to your requirements.

Additional information

Dimention

2700x1600x2500mm

Pallet Size

850 x 550 x 25 mm

Power

24KW

Shaping cycle

15-20 seconds

Voltage

Adjustable

Weight

4.5T

Product Details:

QT4-15 is a full automatic hydraulic concrete blocks making machine production line. This whole production line is composed of cement silo, screw conveyor machine, cement scale, batching machine, mixer, belt conveyor, pallet feeder, automatic stacker and block making machine. You can choose suitable supporting facilities according to your requirements.

QT4-15 concrete block making machine produces various kinds of bricks/blocks, including colorful bricks which are fed with layered material, through-the-body tiles, dock linkage blocks, road’s curb bricks, SOD bricks, hydraulic blocks, hollow blocks, perforated bricks, standard bricks and so on.

QT4-15 is a fully automatic PLC with hydraulic system brick machine This machine no need worker control, easy operation
QT4-15 has bigger vibration force and better hydraulic system, it could produce faster and better quality blocks. it could work durable and stably
Concrete block machine machine,QT4-15 automatic brick making machine

MAIN TECHNICAL PARAMETERS FOR QT4-15 BLOCK MACHINE LINE

Dimension of host machine2700x1600x2500mmHost machine power24KW
Mould period15-20sVibration force30-50KN
The size of the pallet850x550x25mmVibration Freq2800-4500
Weight of the machine4.5TMixer modelJQ500





Details:
Concrete block machine machine,QT4-15 automatic brick making machine

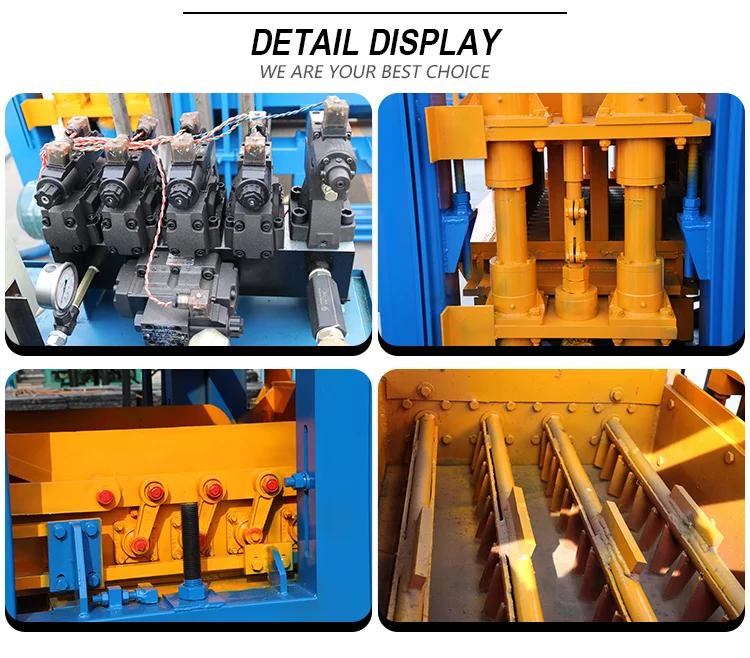

A: This new design could ensure head mold could up and down in level, even if meet small sand and stones, protect machine.

B:The guide posts are chrome-plating treatment and all outer cast of guide posts are made by high quality copper.

These keep parts of the machine smoothly use long time .

C: Head mold famous brand thicker steel material, it can use longer time, .Axle vibration box, it could supply bigger vibration force, make blocks better quality and save cement.
D/E: Unique material spreading machine with special arch rod to force steel forks in big force. Make the material spreading fast and evenly. And all steel on the arch rod and forks are made by hot treatment to keep long time use.

Concrete block machine machine,QT4-15 automatic brick making machine

QT4-15 Concrete block factory all investment items solution:

Total Power Consumption58.8 kw/h; 470.4 kw/8 hours
Max. Material Consumption Per 8 Hours
a. Concrete: 10% cement, 30% sand; 60% stone powder
b. 400-200-200mm; 2 holes hollow block
Water: about 2995 kgs
Cement: about 14676 kgs
Sand: about 44028 kgs
Stone powder: about 88061 kgs
Factory total sizeAt least 1400 square meters, at least 4 rooms
Workers5-6 workers in factory
Machine parts informationMotor: Shanbo brand (Chinese famous brand)
PLC: Vigor from Taiwan
Inductor and Switch: CHNT and Schnelder
WarrantyOne year

Notice:

1. All QT4-15 block machines need to load into 3 or 4 pcs 40HQ container.
2. QT4-15 block machine also need 1500pcs fiber pallet when produce blocks.
3. QT4-15 mold changeable.
4. All matching machines for QT4-15 are all optional
