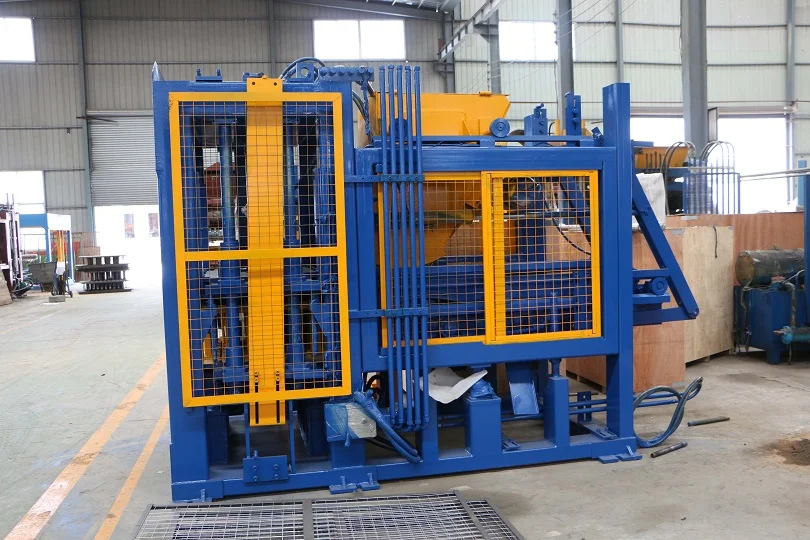

QT 6-15 hydraulic concrete brick block moulding machine, it produces different kinds of blocks or bricks by changing molds. It is widely used to produce hollow blocks, solid blocks, color paving bricks, grass blocks, curbstones of various size and shape according to buyer local market.
It is controlled by PLC and form bricks with hydraulic pressure to guarantee finished blocks high density and strength.
| Dimention | 4350*2000*2700mm |
|---|---|
| Pallet Size | 900x700mm |
| Power | 30kw |
| Voltage | Adjustable |
| Weight | 7.5ton |
| Shaping cycle | 15-20 seconds |

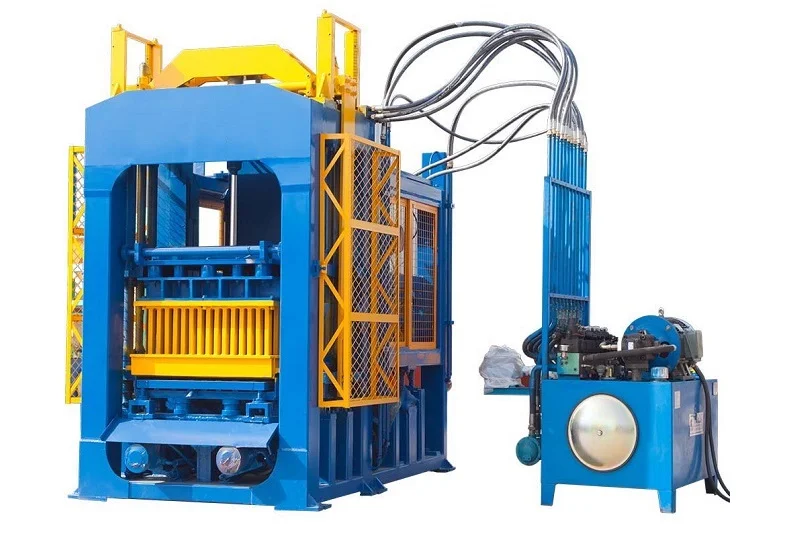

QT6-15 hydraulic concrete block moulding machine produces different kinds of blocks or bricks by changing molds. It is widely used to produce hollow blocks, solid blocks, color paving bricks, grass blocks, and curbstones of various sizes and shapes according to buyer’s local market.
1. It is controlled by PLC and form blocks with hydraulic pressure and platform vibration to guarantee finished blocks with high density and strength.
2. Block molds adopt wire cutting/precious line cutting technology and heat treatment technology to assure accuracy and toughness.
3. Electrical and hydraulic components are imported from Europe, Japan, Taiwan, etc. The comprehensive performance of the equipment is stable and reliable.
4. As an original creation, we adopt converter vibration technology. With the converter, the exciting force and vibrating frequency can be achieved through conversion speed.
5. Color feeding machine is installed to produce all kinds of colorful bricks.
6. Motors adopts the national inspection-free motor (pure copper core), and the hydraulic station adopts the special components for large hydraulic machinery.
Main Technical Parameter | |||
| Dimension of host machine | 4350*2000*2700mm | Total power | 73kw |
| Weight of host machine | 7.5T | Vibration force | 70-90KN |
| Moulding cycle | 15-20s | Mixer model | JS500 |
| Water consumption | 5-8Ton/day | Pallet size | 900*700*25mm |
| Workshop area/Factory area | 250㎡/ 2500㎡ | Voltage | Adapt to local |
Production Capacity | ||
| Specification | Pcs/Mould | Pcs/hour |
| Hollow block 400x200x200 (mm) | 6 | 1,200 |
| Hollow blocks 400x150x200 (mm) | 8 | 1,600 |
| Solid brick 240*115*53 (mm) | 40 | 8,000 |
| Paver 200x100x60 (mm) | 24 | 4,800 |
| Shape paver 200*163*60 (mm) | 16 | 3,200 |

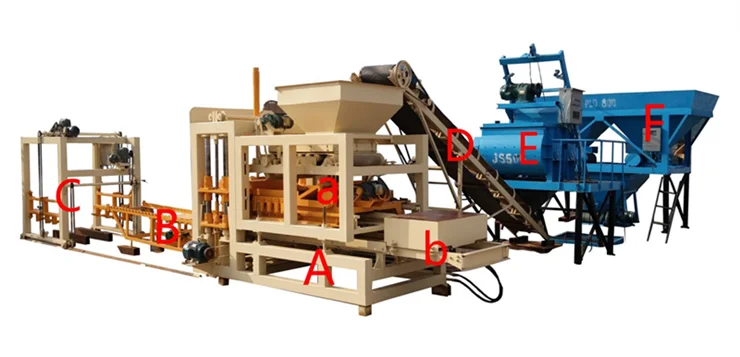

| A | QT6-15 Host block moulding machine, 30kw a. Automatic material feeding system b. Automatic pallet feeding system |
| B | Block receiver machine 0.75kw |
| C | Stacker, it layes 4-5 pallets of blocks with 3~4 rows, 3kw |
| D | 6m conveyor belt machine, 1.5kw |
| E | JS500 Mixer , 25.1KW |
| F | Batching machine PLD 800, power, 9KW |
| Color feeder system (Optional) | Color feeder machine |
| Color mixer–1.2m; 5.5kw | |
| 4m conveyor belt machine 0.75kw |

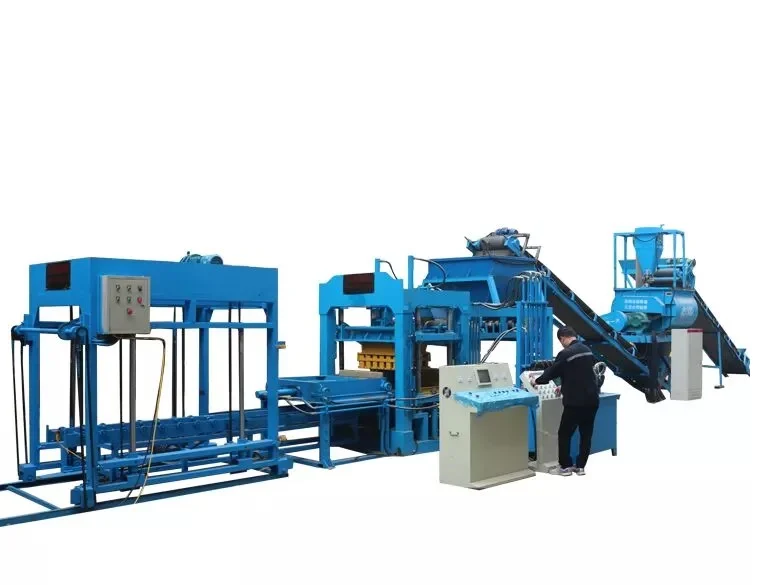

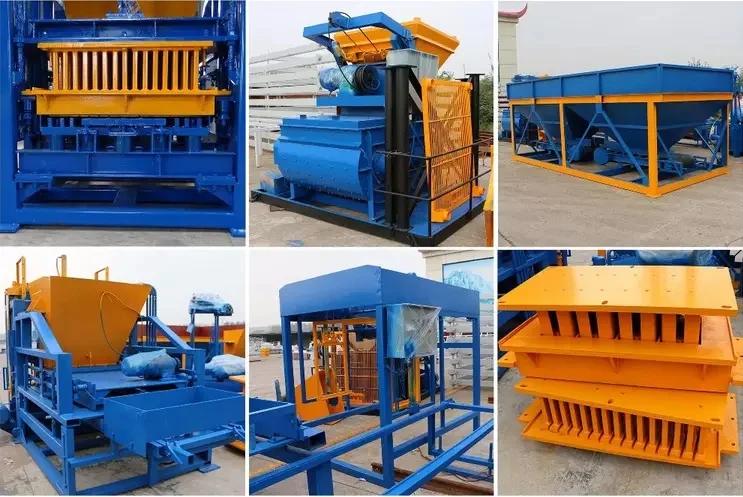

QT 6-15 Fully-automatic Concrete Block Moulding Machine Details :

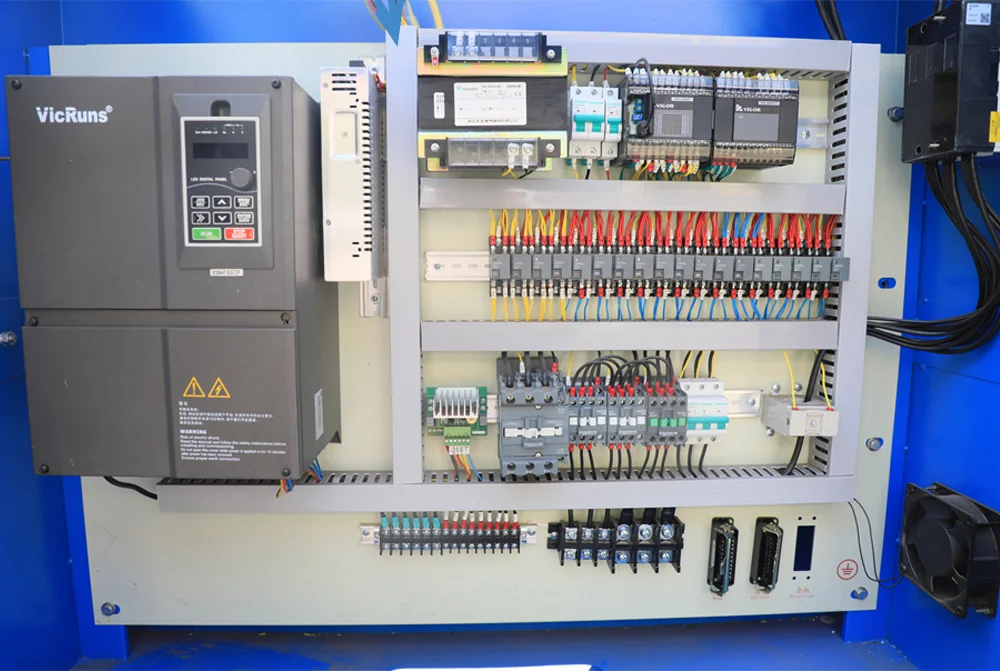

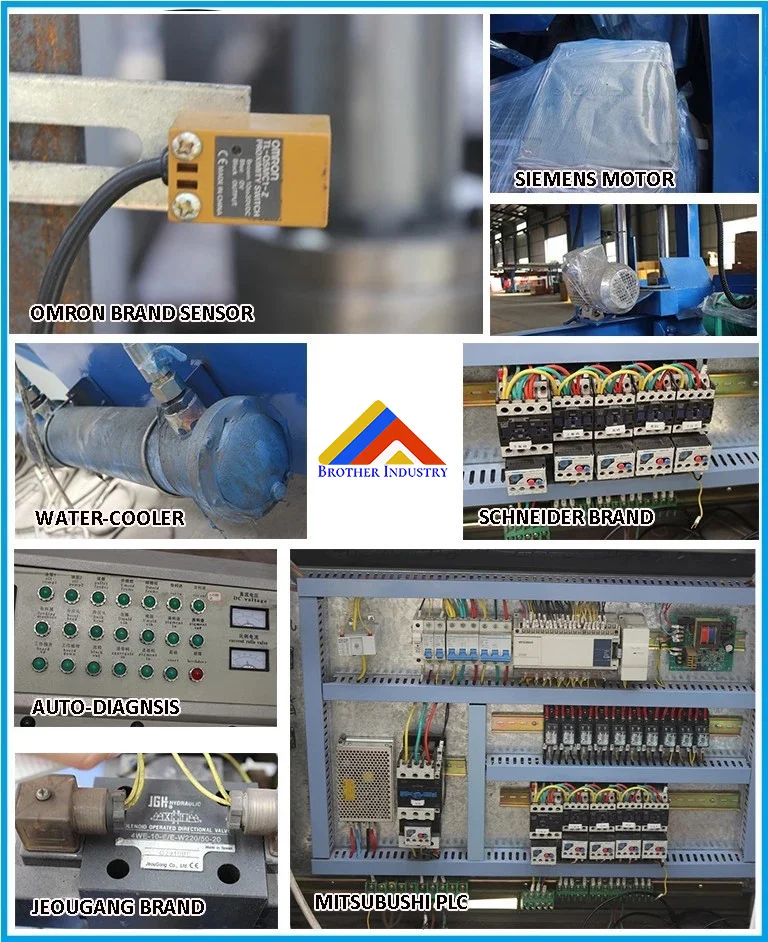

QT 6-15 Fully-automatic Concrete Block Moulding Machine Accessories :
QT6-15 block moulding machine factory production Process：
a. Wheel loader delivers raw material into the batching machine, need 1 worker
b. Cement silo delivers cement into the mixer through screw conveyor machine
c. Mixer mixes material, then deliver to block machine by conveyor belt machine, need 1 worker. If centralized control applied, no worker needed.
d. After producing blocks, block receiver delivers blocks to stacker
e. Forklift delivers blocks to curing area , need 1 worker
f. Curing area : Curing need 1~3 days, then take blocks out from pallet; need 1-2 workers.
g. After pallet empty, forklift delivers pallets to to pallet feeding machine
h. Sell blocks: Sell blocks and management; 1 worker
Total need about 5-6 workers in QT6-15 automatic interlocking block machine factory.
Concrete Blocks Samples :
Note:
1. Complete line of QT6-15 block making machine need 2 or 3 pcs 40HQ containers.
2. QT6-15 Concrete block machine also need 1200pcs GMT fiber pallet or bamboo pallets when produce blocks.
3. Raw material proportion for your reference:
a. Concrete: 10% cement, 30% sand, 60% small stones
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
