QT4-40 Semi-automatic Concrete Hollow Block Making Machine – Professional Block Making Machine ManufacturerQT40-2 Concrete Hollow Block Making Machine - Professional Block Making Machine Manufacturer
Menu

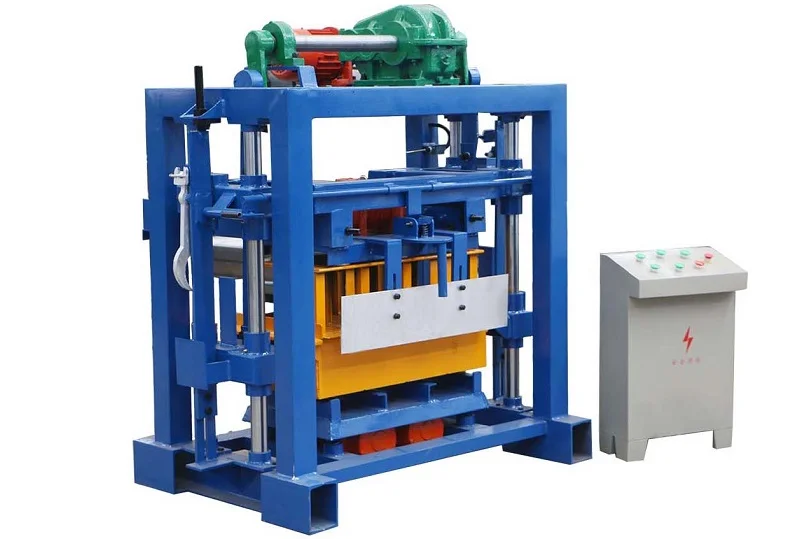

QT4-40 Semi-automatic Concrete Hollow Block Making Machine
QT40-2 (QT 4-40)is a semi-automatic concrete hollow block making machine.
This Concrete block making machine can produce many different shapes hollow/solid blocks and paver by changing moulds.
Apply a linker to connect with the air conveyor, which can directly inline with filling machine .
Our moulds adopt precise line cutting technology and carburizing treatment technology to assure longer mould life span and increase the block mould precision, so the brick moulds have better performance and longer service time. And the bricks produced are of higher quality.
This model is made of high-performance steel Q345 selected according to international CE standard. Thus it has advantages in high toughness, wear and tear resisting and high strength.
For size 400*150*200, It can achieve 3000 pieces of brick per shift (8 hours) , so the production efficiency is very high among manual bricks machines types of brick.
Equipped with PLC control system, and the block mould moves from front to back by hands it’s simple to operate.
Main Parameter :
Dimension of host machine
1350x1460x1700mm
Pallet size
850x450x20mm
mould period
40s
total machine power
16.3kw
workshop area
60m2
Mixer model
JD350
Vibration force
30KN
Voltage
220V/380V/415
Production Capacity :
Block name
Block photo
Block size
Qty/mould
Qty/hour
Hollow block
400*200*200mm
4pcs
288-360pcs
Hollow block
400*150*200mm
5pcs
360-450pcs
Solid block
240*110*70mm
15pcs
1080-1350pcs
Paver
225*112.5*60mm
9pcs
648-810pcs
Paver
200*100*60mm
14pcs
1008-1260pcs
Machine Details :
Notice :
1.All QT40-2 brick making machines total Vol. is about 8cbm
2. QT40-2 block moulding machine also need 500-800pcs fiber pallet when produce blocks.
3. Raw material proportion for your reference:
a. Concrete: 10% cement, 30% sand, 60% small stones
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
