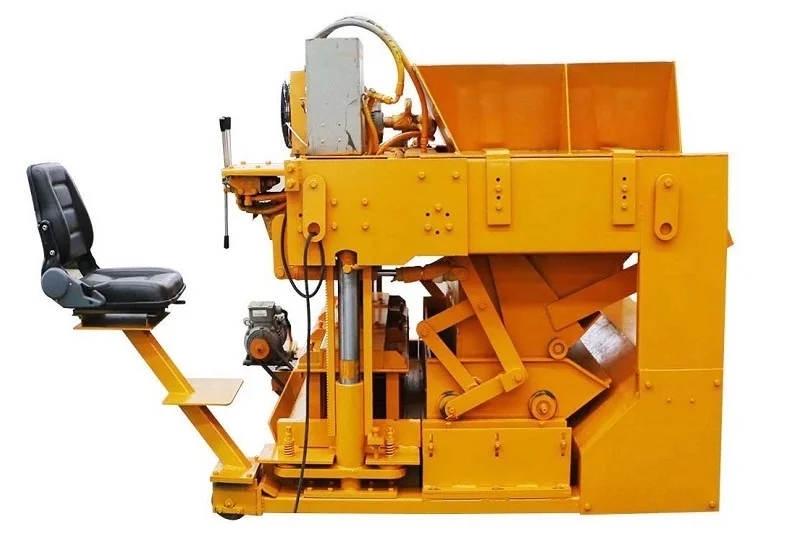

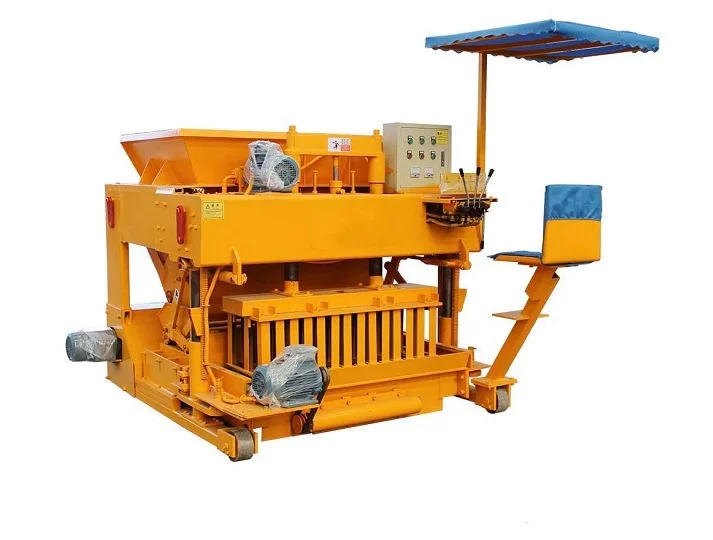

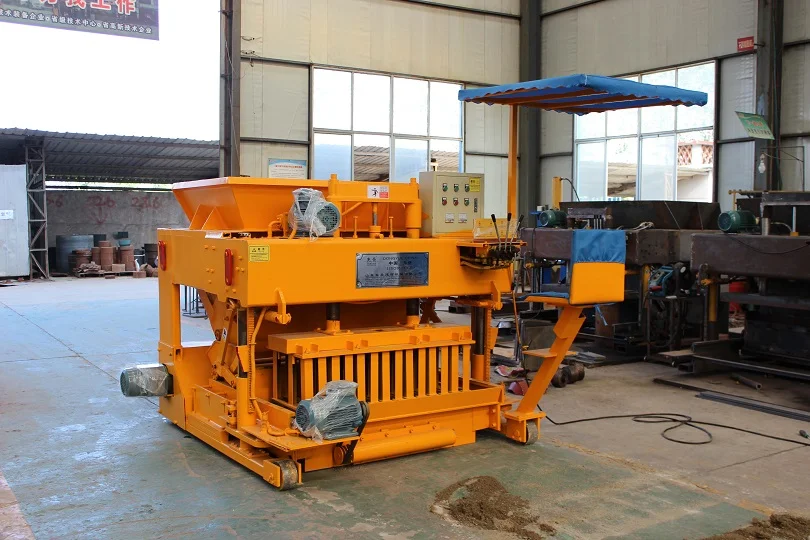

QTM6-30 Mobile Concrete Block Moulding Machine – Professional Block Making Machine ManufacturerQTM6-30 Mobile Concrete Block Moulding Machine - Professional Block Making Machine Manufacturer
This Mobile Block Moulding Machine QTM6-30 is manufactured on the base of technical modifications to the original block shaping machines, that is changing the former one-time-vibration into twice-vibrations of molding core, So the block density becomes higher, shaping speed quicker and block strength more even , This model of machine can be suitable to the customers who have any kinds of existing cement working sites. And the consumption pallets can be reduced.
QTM 6-30 is a mobile Concrete hollow block moulding machine, so QTM 6-30 doesn’t need pallets when producing blocks, then you can save cost largely.
QTM 6-30 Egg laying brick making machine can produce various cement and concrete blocks by changing moulds.
QTM 6-30 is a automatic brick making machine and the shaping cycle is 20~24s, so the production efficiency is very high.
Our moulds are made of 16# manganese steel. Besides the good raw material, precise line cutting technology and 900 °C carburizing heat treatment technology are all adopted in the process of brick moulds production. So the brick moulds have better performance and longer service time.
Main Parameter :
Dimension
1300*1500*1000mm
Weight
2.6Ton
Shaping cycle
30~40s
hydraulic pressure
12-14MPa
Host machine power
12 KW
frequency
3500/min
Pallet size
no need pallet
productivity
8000~10000pcs/day
Production Capacity :
Block Type
Size (mm)
Qty/mould
Cycle molding
Per day 8hours
Hollow brick
400×200×200
6
30s
6912 pcs
400×150×200
8
30s
9216 pcs
400×120×200
10
30s
11520 pc

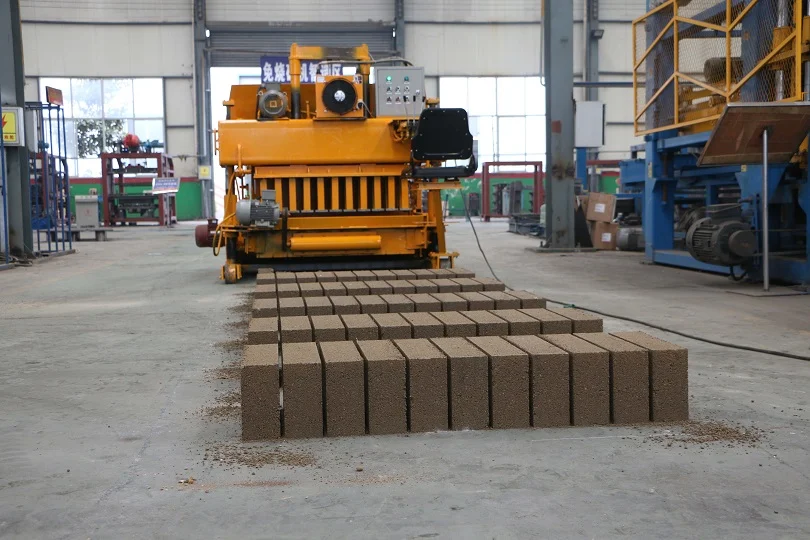

Block Samples :
Notice :
Raw material proportion for your reference:
a. Concrete: 10% cement, 30% sand, 60% small stones
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
