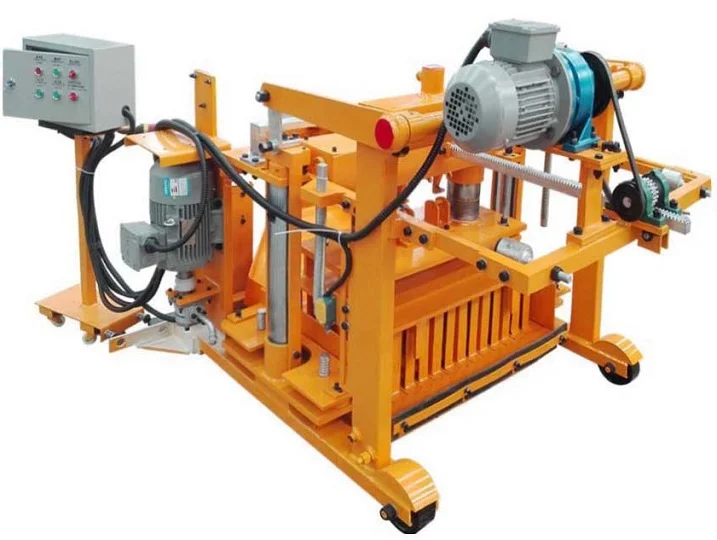

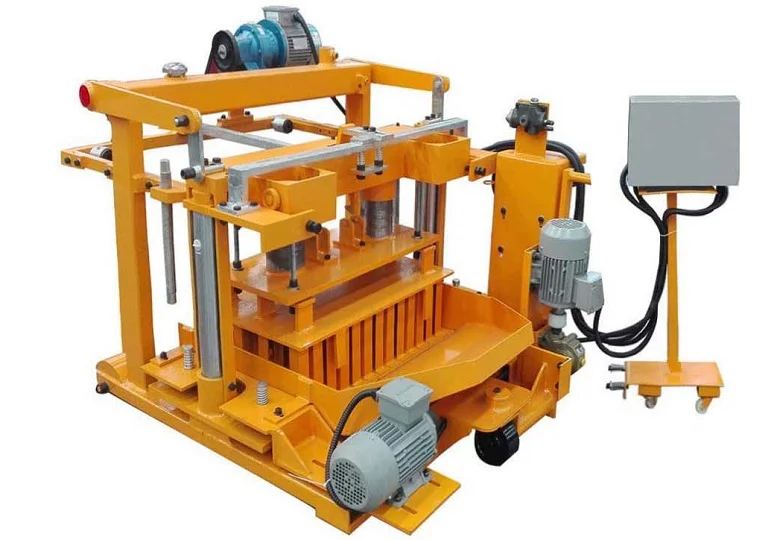

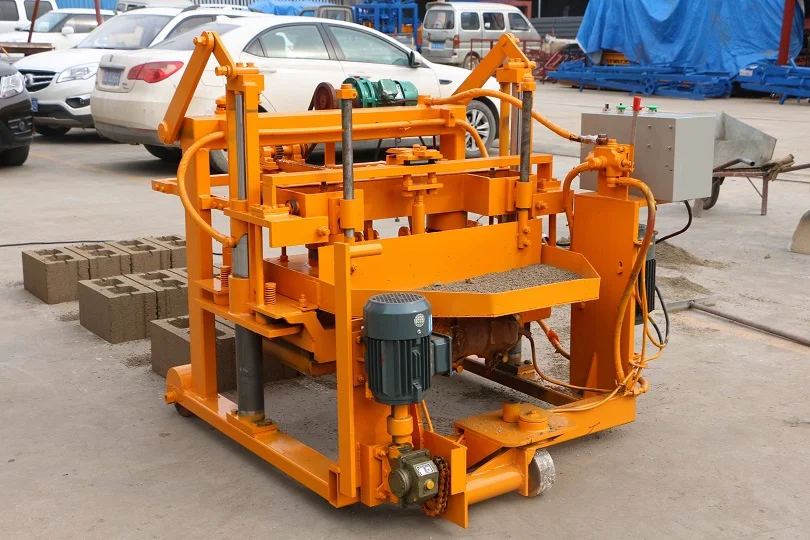

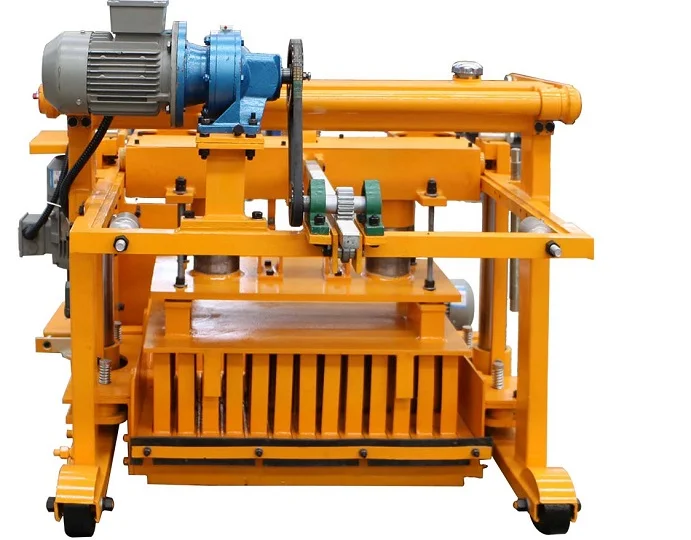

QT40-3A is a mobile concrete block making machine. So this machine doesn’t need pallets, then you can save cost largely.
| Dimention | 1150(L)×1450(W)×1950(H)mm |
|---|---|
| Power | 6.7kw |
| Shaping cycle | 45s |
| Weight | 1100kg |
| Voltage | Adjustable |
QT40-3A is a mobile concrete block making machine. So this machine doesn’t need pallets, then you can save cost largely.
This egg laying concrete block making machine can produce many different shapes hollow brick and solid bricks by changing moulds.
The moulds adopt precise line cutting technology and carburizing treatment technology to assure longer mould life span and increase the block mould precision, so the brick moulds have better performance and longer service time. And the bricks produced are of higher quality.
Simple and reliable operation,fast production,high capacity,low power consumption(only 1/6 of stationary concrete brick machine of similar capacity).
Main Parameter :
| Molding cycle | 45s |
| Vibration frequency | 2800hz |
| Vibration force | 25kn |
| Mold | Normal using life: 1-2 years |
| Host brick machine size | 1150(L)×1450(W)×1950(H)mm |
| Net Weight | 1100kg |
| Host machine power | 6.7kw |
.QT40-3A block factory all investment items solution:
| Total Power Consumption | 14.2 kw/h; 113.6 kw/8 hours |
| Max. Material Consumption Per 8 Hours a. Concrete: 10% cement, 30% sand; 60% stone powder b. 400-200-200mm; 2 holes hollow block | Water: about 665 kgs |
| Cement: about 3261 kgs | |
| Sand: about 9783 kgs | |
| Stone powder: about 19571 kgs | |
| Factory total size | At least 600 sqm even cement floor; 3 rooms |
| Workers | 4-5 workers in factory |
| Machine parts information | Motor: Shanbo brand (Chinese famous brand) Inductor and Switch: CHNT and Schnelder |
| Warranty | One year |
Concrete Block Samples :
Notice :
1.Total need 4-5 workers in factory 2.All QT40-3A block machines total Vol. is about 12 cbm
3. QT40-3A mold changeable.
4. Raw material proportion for your reference:
a. Concrete: 10% cement, 30% sand, 60% small stones
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
