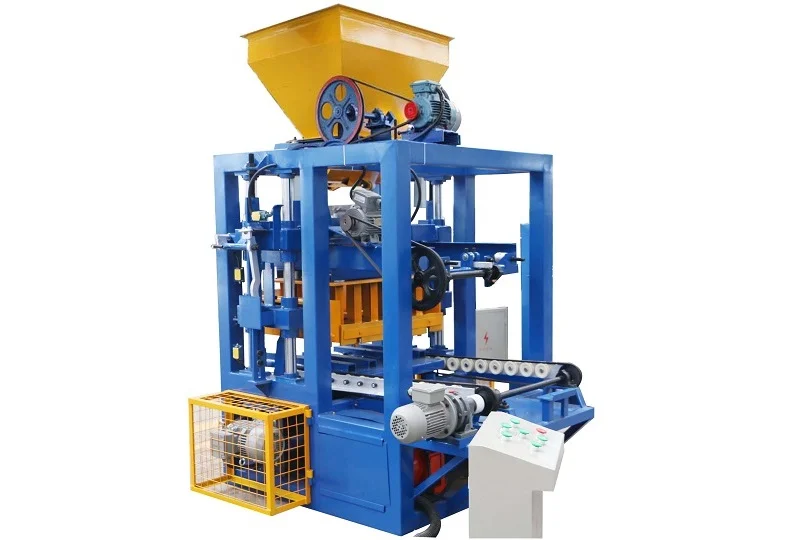

QT4-24/26Hollow Brick Moulding Machine Low Price – Professional Block Making Machine ManufacturerQT4-24 Hollow Brick moulding Machine - Professional Block Making Machine Manufacturer
QT4-24 semi-automatic hollow brick moulding machine, high adaptability and multi-function, not only suitable for making concrete block, but also suitable for fly ash, slag and other materials, with different moulds, can produce various specifications of building bricks, hollow brick, solid brick and porous brick etc.
QT4-24 semi-automatic hollow brick moulding machine, high adaptability and multi-function, not only suitable for making concrete block, but also suitable for fly ash, slag and other materials, with different moulds, can produce various specifications of building bricks, hollow brick, solid brick and porous brick etc.
QT4-24 is a semi-automatic hollow brick moulding machine and the shaping cycle is 24s, for size 400*100*200, it can achieve 6720 pieces of bricks/8h. At the same time, this machine is controlled by PLC control system, then the operation is simple.
Our moulds are made of 16# manganese steel. Besides the good raw material, precise line cutting technology and 900℃ carburizing heat treatment technology are all adopted in the process of brick moulds production. So the brick moulds have better performance and longer service time. The using life is 7-8 times longer than common molds.
Main Parameter :
QT4-24 Host machine total power
13.45kw
Molding cycle
24s
Vibration frequency
4200hz
Vibration force
35.5kn
Function
Semi automatic vibration forming
Host brick machine size
1850(L)×1900(W)×2550(H)mm
Net Weight
1850KG
Pallet size
850-550MM

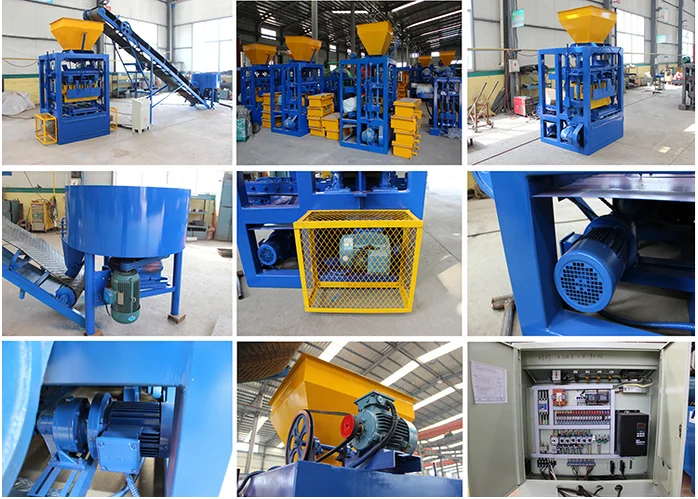

Details :

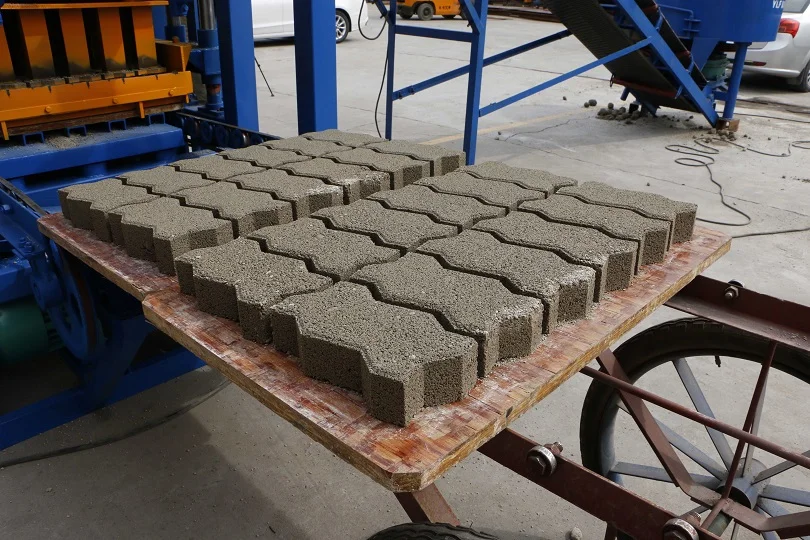

Concrete Blocks Samples :
Production Capacity :
Name
Specification
Molding time
Pcs/mold
Pcs/Hour
Pcs/day
hollow block
400*200*200
20-25s
4
360-450
2880-3600
hollow block
400*100*200
20-25s
7
630-840
5040-6720
hollow block
400*150*200
20-25s
5
450-600
3600-4800
hollow block
400*250*200
20-25s
3
270-360
2160-2880
Paver block
245*130*60
20-25s
14
1260-1680
10080-13440
QT4-24 block factory all items investment information solution:
Total Power Consumption
23.55 kw/h; 188.4 kw/8 hours
Max. Material Consumption Per 8 Hours
a. Concrete: 10% cement, 30% sand; 60% stone powder
b. 400-200-200mm; 2 holes hollow block
Water: about 1664 kgs
Cement: about 6115 kgs
Sand: about 18345 kgs
Stone powder: about 36692 kgs
Factory total size
At least 800 square meters
Workers
3-4 workers in factory
Main parts quality
Motor: Shanbo brand (Chinese famous brand)
Inductor and Switch: CHNT
Warranty
One year
Notice :
All QT4-24 brick moulding machine need to load into a 20GP container.
QT4-24 block production total need 3 workers
Raw material proportion for your reference:
a. Concrete: 10% cement, 30% sand, 60% small stones
b. 10% cement, 90% stone powder
c. 10% cement, 30% fly ash, 60% stone powder
